Portable marking machines are easy to carry, easy to maintain, and cost-effective;
Marking is clear and beautiful, never disappearing.
Portable laser marking machines can spray print clear trademarks, text, patterns, numbers, barcodes, and other information on various products, making the operation simple.
Especially suitable for marking hardware tools, knives and kitchenware, plastic products, computer keyboards, metal jewelry, buttons, integrated circuits, packaging bottles, eyeglass frames, sanitary ware faucets, and other products.
Product Parameters
Product Parameters | LMB20-1A-CJ | |
Machine Material | Engineering plastics | |
Laser Type | Fiber Laser Source | |
Laser Power | 20W | |
Laser Wavelength | 1064 nm | |
Max Pulse Energy | 0.7mJ | |
Adjustable Frequency Range | 1-600 kHz | |
Printing Mode | High-precision two-dimensional scanning mode | |
Marking Speed | <7000mm/s | |
Operation Interface | Embedded 7-inch touch screen Linux operating system | |
Cooling System | Built-in Air Cooling | |
Marking Line Type | Both dot matrix and vector can be used | |
Marking Range | 60mmX60mm (standard) 100mmX100mm (optional) | |
Positioning Method | Red Light Positioning | |
Marking character position | Any line within the marking range | |
Print Speed | 600 characters/second (specific speed is related to product material and print content) | |
Languages supported | Simplified Chinese, English, Korean ,German, Arabic numerals, etc. | |
File Format | png、jpg、bmp、dxf、pit、svg | |
Barcode/QRcode | CODE25、CODE39、CODE49、CODE93、CODE126、CODE128 EAN13、 EAN128、PDF417、CODBAR、UPCA、UPCA_CHK UPCE_CHK、DataMatrix、 QRCode, etc. | |
Input Voltage | 220V/110V | |
Maximum Power Consumption | 20W250W-30W280W | |
Machine Net Weight | Weight with lithium battery: 7.8KG | Weight without lithium battery: 6.4KG |
battery Life | About 4 hours (lithium battery) | |
Charge time | 1 hour 30 minutes (lithium battery) | |
Adapt to the temperature | 0-40°C | |
Ambient relative humidity | 30 -85 RH (no condensation) | |
Appearance size | 330mm*280mm*200mm | |

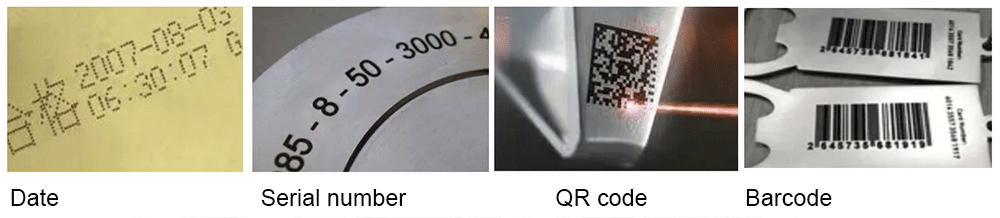

Marking type | QR code, barcode, Chinese, English, date, logo, pattern, etc. |
Product Advantages
1. Flexibility: Handheld portable laser marking machines are more convenient than traditional desktop devices and can be operated anytime, anywhere. There is no need to fix the workpiece in one place, making it suitable for various complex shapes and sizes of workpieces. This flexibility adds convenience to the production line and also improves work efficiency.
2. High precision: Laser technology provides good precision, and handheld portable laser marking machines can achieve very fine patterns and fonts, which are not prone to blurring or distortion. This high precision is particularly important for applications that require clear labeling or tracking, such as QR codes and barcodes.

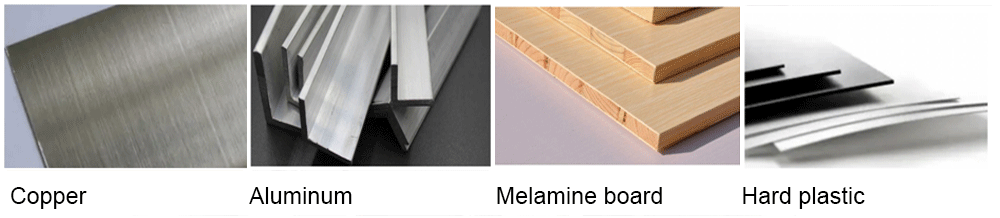

3. Multi material adaptability: Handheld portable laser marking machines can be applied to many different materials, such as metal, plastic, glass, leather, etc. This makes it an ideal choice for personalized lettering, trademark marking, anti-counterfeiting watermarks, and other fields.
4. Fast speed: The handheld portable laser marking machine operates quickly and can greatly save time and energy compared to traditional marking methods. For environments with high production volume and fast delivery requirements, it can improve production efficiency.
5. Long lifespan: Lasers typically have a long lifespan and can perform a large number of marking tasks without being damaged due to frequent use. This means that handheld portable laser marking machines can provide stable and reliable performance in long-term use.
Application Industry
In the era of the Internet of Things, laser technology plays an unshakable role in industrial manufacturing, known as the universal processing tool of the 21st century, and is an important component of advanced manufacturing technology.
At present, laser marking machines are applied in industries such as electronic cigarettes, hardware products, pharmaceutical packaging, alcohol packaging, building ceramics, beverage packaging, rubber products, shell nameplates, craft gifts, electronic components, leather, electronic components, integrated circuits (IC), electrical appliances, manual communication, tool accessories, precision instruments, glasses and watches, jewelry accessories, automotive accessories, plastic buttons, building materials, PVC pipes The marking of graphics and text in various fields such as medical devices, thus leaving permanent marks on the surface of the workpiece.
